Fig. 8 | Biological Procedures Online

Fig. 8

From: Exosomal microRNA-342-5p secreted from adipose-derived mesenchymal stem cells mitigates acute kidney injury in sepsis mice by inhibiting TLR9

Fig. 8

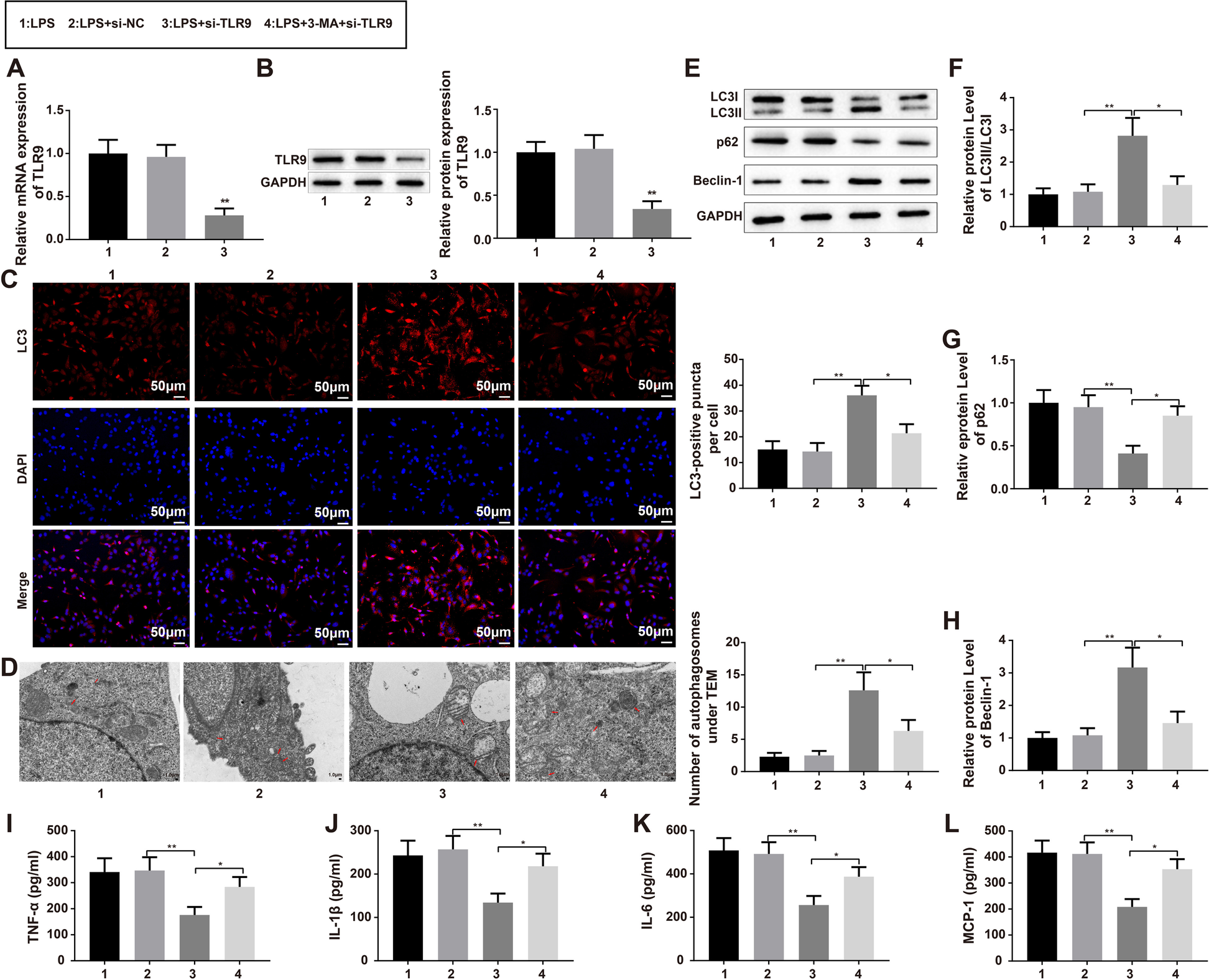

Knockdown of TLR9 promotes cell autophagy to ameliorate LPS-induced inflammation of HK-2 cells. Notes: After sepsis cell models were transfected with si-TLR9, qRT-PCR and western blot were employed to examine the transfection efficiency of si-TLR9 (A, B). Additionally, the HK-2 cells were subjected to 3-MA for 30 min, exposed to 1 µg/mL LPS and then transfected with si-TLR9. The immunofluorescence was utilized for measurement of fluorescence intensity of LC3 (C), TEM for observation of the number of autophagosomes (D), and western blot (E) for analysis of protein expression levels of autophagy-related proteins LC3-II/LC3-I (F), p62 (G), and Beclin-1 (H). Then, ELISA was applied to detect the contents of inflammatory cytokines TNF-α (I), IL-1β (J), IL-6 (K) and MCP-1 (L) in the supernatant of LPS-induced HK-2 cells; * P < 0.05, compared to the LPS + si-TLR9 group; N = 3. ** P < 0.01, compared to the LPS + si-NC group; lipopolysaccharide; 3-MA, 3-Methyladenine; TEM, transmission electron microscope. Data were analyzed using one-way analysis of variance and Tukey test was used for post hoc analysis. Data were generated from three independent experiments
