Fig. 5 | Biological Procedures Online

Fig. 5

From: Ultrasound and microbubble-mediated delivery of miR-424-5p has a therapeutic effect in preeclampsia

Fig. 5

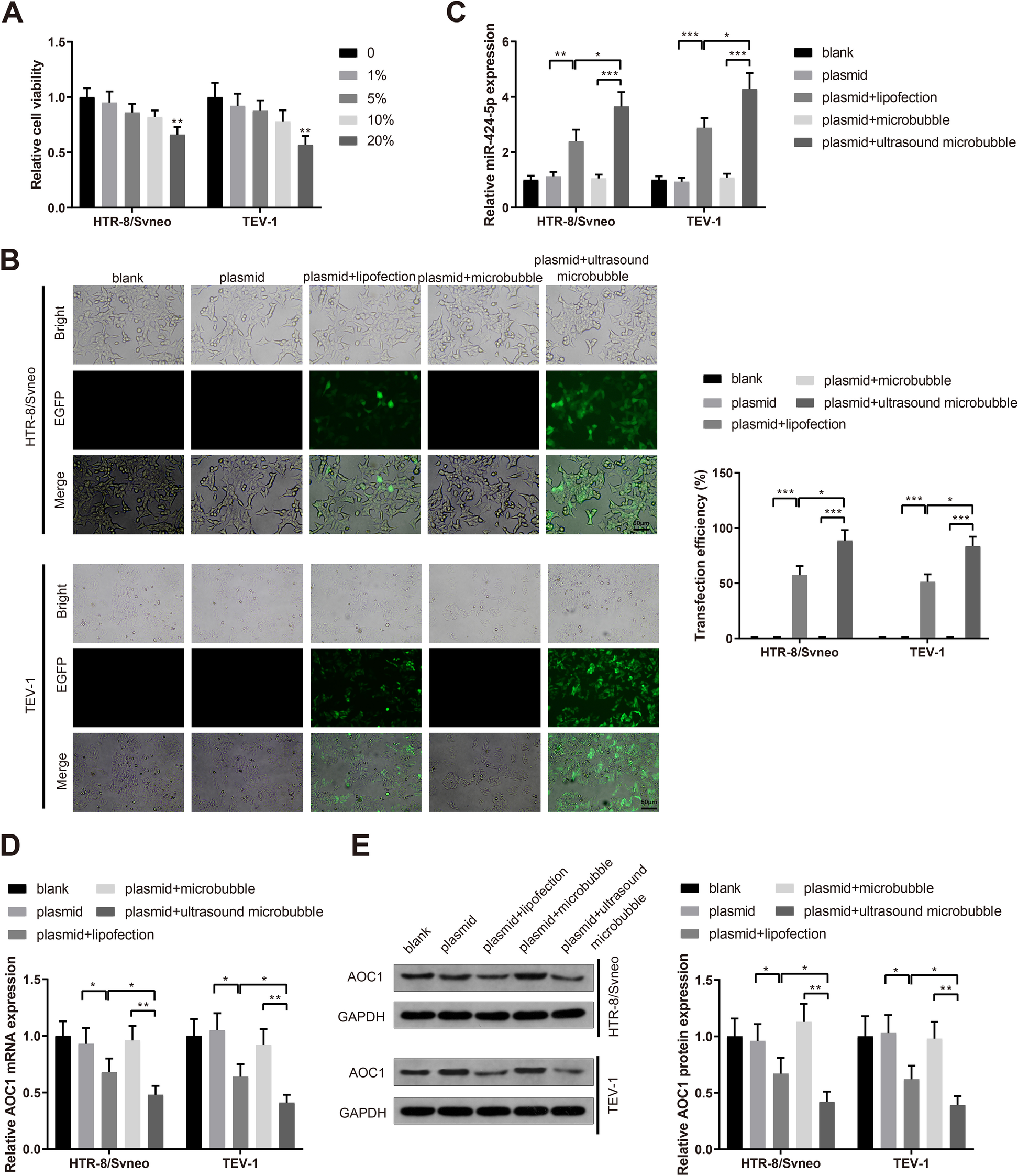

Ultrasound and microbubble mediated delivery significantly promotes transfection efficiency of miR-424-5p overexpression. Note: MTT assay determined the effects of perfluoropropane microbubbles with different concentrations on the viability of HTR-8/Svneo and TEV-1 trophoblast cells (A). After lipofection transfection and ultrasonic microbubble transfection, EGFP positive rate was measured to assess the transfection efficiency of miR-424-5p overexpression (B); qRT-PCR examined miR-424-5p (C) and AOC1 (D) expression levels; western blotting detected AOC1 protein expression levels (E). * P < 0.05, **P < 0.01, ***P < 0.001
